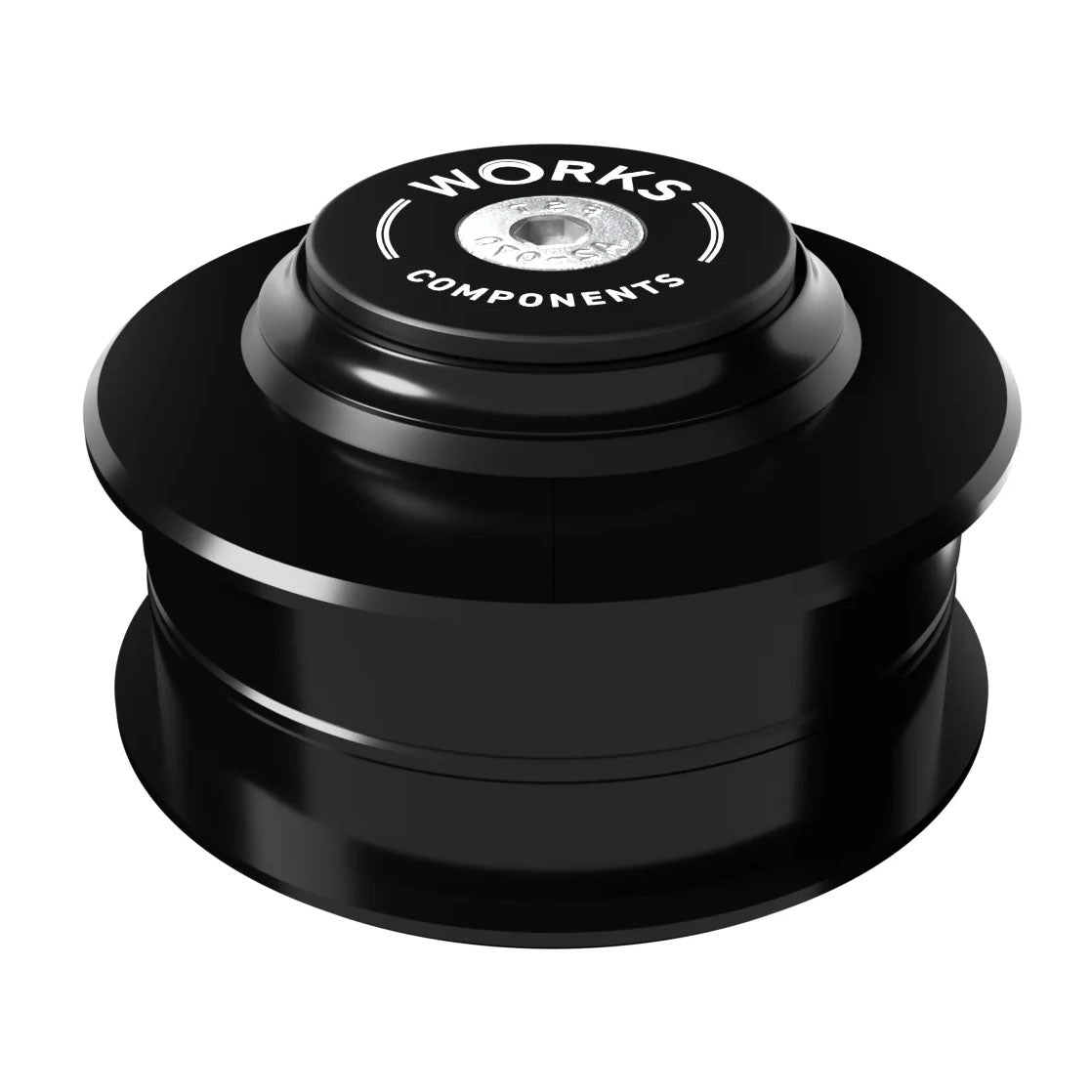

Works Components 1.5° Angle Headset - ZS56|ZS56 - 110-119mm HT
$177.00
Unit price
/
Unavailable
SKU:
WCH5656-15D-3
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped out within 1 business day! Add this item to your cart to see shipping options at checkout.
Works Components 1.5° angle-adjust headset with ZS56 upper and ZS56 lower cups for tapered steerer tubes and head tube lengths between 110mm and 119mm. CNC-machined in the UK from 6082-T6 aluminum with sealed bearings. Allows + or - geometry adjustment. Fits frames with 56mm upper and 56mm lower internal head tubes. Tapered steerer tube compatible (1 1/8" to 1 1/2") or with 1 1/8” fork with a reducer crown race. Ideal for trail, enduro, E-bike and downhill bikes.
- Adjusts the bike’s head tube angle by 1.5 degree
- Due to angled nature, headsets are head tube length specific. This headset fits head tubes between 110mm and 119mm in length
- Precision CNC-machined from 6082-T6 aluminum and anodized in the UK
- Includes top-cap, star nut, bearings and crown race
- TECH SPECS
| Model | 1.5 Degree Angle Headset |
| S.H.I.S. | ZS56/28.6 / ZS56/40 |
| Stack | 8mm/3mm |
| Angle | 1.5° |
| Head tube Length | 110-119mm |
| Head tube Internal Diameter | Upper: 56mm (ZS56) / Lower: 56mm (ZS56) |
| Cup Insertion Depth | Upper: 11.5mm / Lower: 11.5mm |
| Upper Bearing | 41mm OD, 45 x 45° AC sealed bearing |
| Lower Bearing | 52mm OD, 45 x 45° AC sealed bearing |
| Color | Black |
