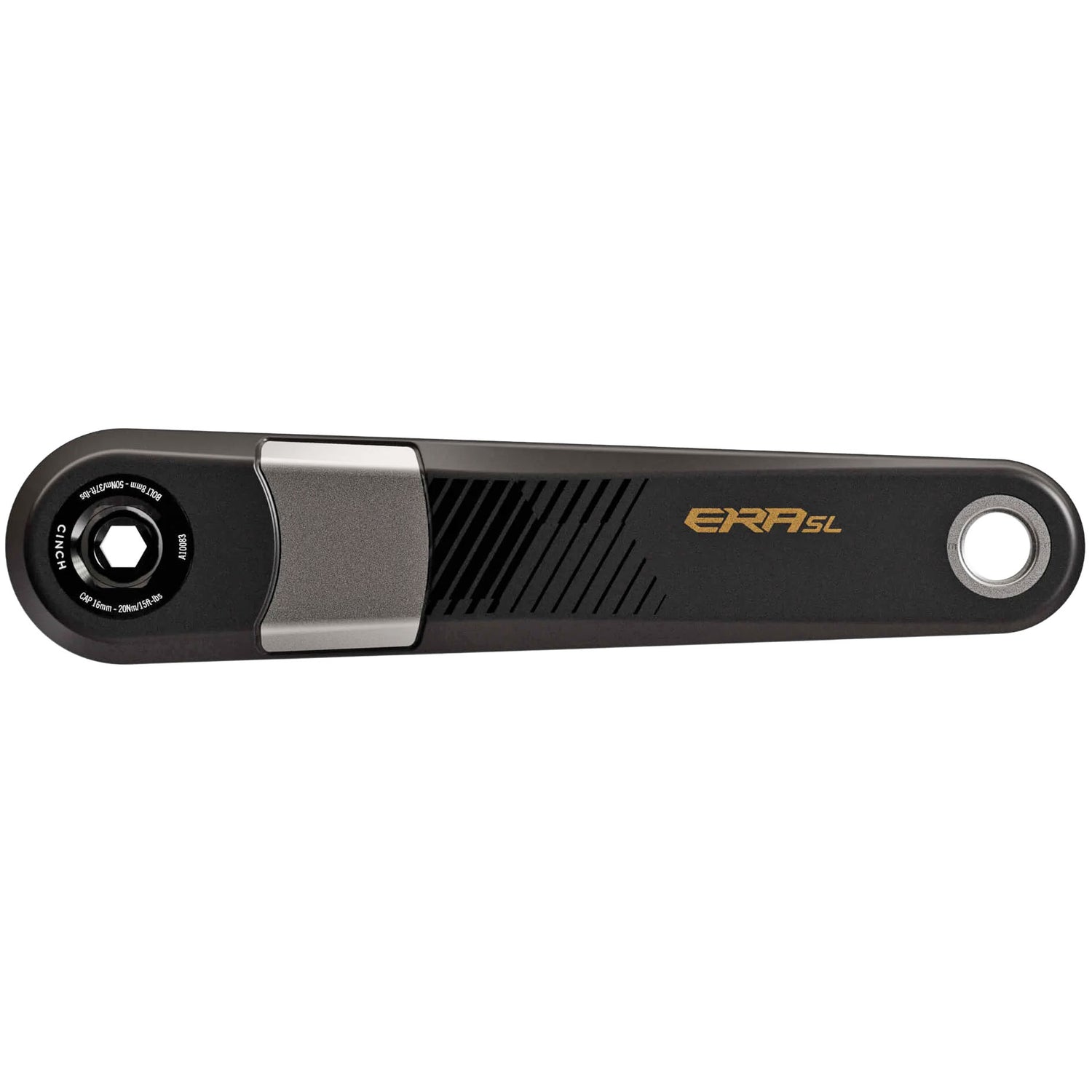

Race Face Era SL Crank Arms - 136mm Spindle - 160mm Length - Kash Money
$952.00
$998.00
Unit price
/
Unavailable
SKU:
940-00-073-02
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped out within 1 business day! Add this item to your cart to see shipping options at checkout.
- Superlight version of the revolutionary Era crank, approved for bikes up to 140mm rear travel
- Same layup and proprietary insert bonding tech as the Era
- All unnecessary body material eliminated, maintaining strength
- Pedal and drive side spindle inserts minimized
- Spindle integrated with non-drive crank arm, eliminating non-drive crank bolt
- Steel wear plate sized down to focus on highest wear areas
- Versatile Cinch system offers interchangeable spiders, limitless ring combinations, swappable width 30mm alloy spindles, and full compatibility across all relevant frame standards
- 136mm wide spindle: 52mm chainline on bikes with Boost 148mm rear spacing (optional: use Shimano 12sp ring for 55mm chainline with 136mm spindle)
- Bottom bracket cups, spanner, and chainrings sold separately
- Designed, tested and manufactured in Race Face's Canadian facility
- 170mm Q-factor
- 347g (170mm)
TECH SPECS
| Model | Era SL |
| Length | 160mm |
| Direct Mount/BCD | Cinch |
| Configuration | 1x |
| Spindle Interface | 30mm |
| BB Shell Width | 73mm |
| Chainline | 52/55mm |
| Material | Carbon |
| Color | Kash Money |
