Fox/Marzocchi Air Shaft for 34 Rhythm/Bomber Z2

Regular price
Sale price
Quantity must be 1 or more
In Stock, Ready to Ship!
Ships within USA only

Pickup Available in our Bellingham, WA shop Store Info

  • The Lost Co

    Pickup Available, usually ready in 24 hours

    2106 Pacific Street
    Ste 102
    Bellingham WA 98229
    United States

    +1 (360) 306-8827

If you're looking to increase or decrease the travel in your 2018+ Fox Float 34 Rhythm or Marzocchi Bomber Z2 fork, then just snag an air shaft and swap it out in your fork!

  • Fits Fox 34 Rhythm & Marzocchi Bomber Z2 forks.
  • Includes brand new seals pre-installed, plus a new spring retainer clip.

*NOTE* - This air shaft will not fit a standard Fox 34, it will only fit the Fox 34 Rhythm

Liquid error (snippets/product-form line 26): include usage is not allowed in this context .

34 Rhythm/Bomber Z2 Air Shaft FAQ

Which models of Fox and Marzocchi forks does this air shaft fit?

The Fox/Marzocchi Air Shaft for 34 Rhythm/Bomber Z2 fits all models of Fox 34 Rhythm and 2018 +Marzocchi Bomber Z2. Fox currently owns and manufactures Marzocchi products, and the Fox 34 Rhythm share the same chassis specs as the Marzocchi Bomber Z2.

This air shaft is NOT compatible with any other models of Fox or Marzocchi forks. It is NOT compatible with non-Rhythm models of the Fox 34 forks including Factory Series, Performance Series Elite, or Performance Series.

How do I properly install and lubricate this air shaft in my fork?

Below is the installation procedure we follow in our shop:

  • REMOVE THE AIR, remove the lower legs, and remove the current air spring.
  • Clean the inside of the air-side stanchion and lower legs like you normally would during a fork service.
  • On the new air shaft, carefully remove the upper piston seal, dip it in Fox 20wt Gold Oil, and reinstall it.
  • Place a dab of 20wt Gold on the top and bottom of the lower seal that slides on the shaft (base plate), and slide it back and forth to lubricate the lower seal.
  • Next, take a fingertip-sized dab of Slickoleum and dunk that finger into 20wt Gold Oil. Swab that mixture inside of the first few inches of the air-side stanchion. We do this about two times to accomodate for the 3cc's of factory recommended oil volume in the air chamber.
  • Install the new air shaft into the stanchion while depressing the air valve at the top of the stanchion to allow the air spring to slide in easily. The outer seal on the base plate wil now be lubricated when you insert the air shaft into the stanchion
  • Install the new snap ring, and you're all set. Reassemble the fork as you usually would during a normal fork service.

Will I need a new damper that matches the same length of travel as the new air shaft?

You do not need to pay any attention to your damper if you are changing the travel to be shorter than what it is now, because the damper will just compress to accomodate for the decreased travel. Yes, you can even decrease your 150mm fork all the way down to 100mm and your damper will simply compress to the new travel without any negative effects.

However, if you are extending the travel of your fork, then you need to check to ensure that you are not going above the maximum travel of your specific damper. Below is a list of the common dampers that fit in the Fox 34 Rhythm/Marzocchi Bomber Z1 chassis, along with their maximum travel according to the fork's wheel size:


Maximum Damper Travel (DO NOT EXCEED):

  • Fox 34 GRIP2 Damper Maximum Travel : 29" Fork = 140mm / 27.5" = 150mm
  • GRIP Damper Maximum Travel : 29" Fork = 140mm or 150mm depending on CSU model (must confirm with Fox) / 27.5" = 160mm
  • RAIL Damper Maximum Travel : 29" Fork = 150mm / 27.5" = 150mm

What is included with this air shaft?

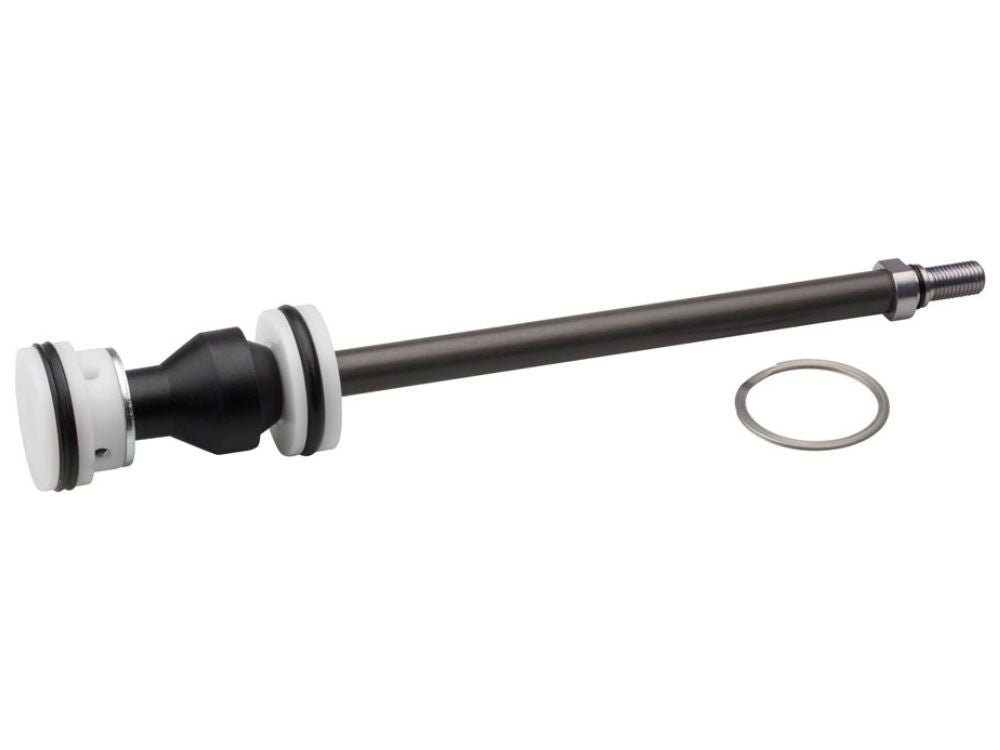

The Fox/Marzocchi Air Shaft for 34 Rhythm/Bomber Z2 includes a new air shaft and all accompanying seals pre-installed, as well as a new spring retaining clip. The air shaft is available in multiple travel options for you to choose from.
